90880 ups maintenance bypass cabinet open

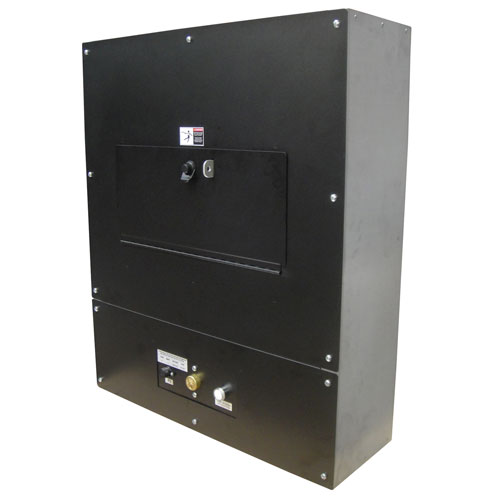

90880 ups maintenance bypass cabinet black

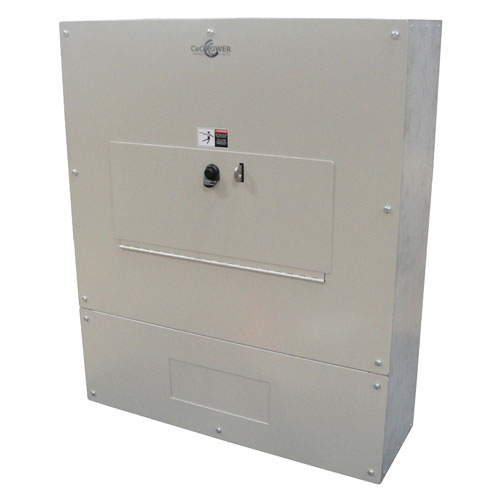

90880 UPS Maintenance Bypass

$5,853.00 – $12,668.00

C&C Power offers Wall Mount Maintenance Bypass Breaker Panels available in multiple configurations. The 90880 UPS Maintenance Bypass (30-225AMPS) allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

Our 90880 UPS Maintenance Bypass is available in 14K, 35K, or 65K AIC ratings for 480V applications, and 18K, 22K, and 65K AIC ratings for 208V applications. The compact design minimizes your footprint and allows you versatility in placement. This wall mount bypass contains three Cutler-Hammer Series C circuit breakers. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

Clear
SKU: 90880-CXXXXXXXXXXXXXXXXXXXX Category: Maintenance Bypasses Tag: Wall Mount Maintenance Bypass
  • Description
  • Key Features
  • Specifications
  • Downloads
  • Reviews (0)

Description

C&C Power offers Wall Mount Maintenance Bypass Breaker Panels available in multiple configurations. The 90880 UPS Maintenance Bypass (30-225AMPS) allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

Our 90880 UPS Maintenance Bypass is available in 14K, 35K, or 65K AIC ratings for 480V applications, and 18K, 22K, and 65K AIC ratings for 208V applications. The compact design minimizes your footprint and allows you versatility in placement. This wall mount bypass contains three Cutler-Hammer Series C circuit breakers. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

Each bypass cabinet is welded with heavy-gauge galvanized steel construction.  Available in black color. It comes fully assembled and tested from the factory. Safety instructions and repair services are conveniently placed in the unit. C&C Power warehouses all maintenance bypass options, therefore, making your lead-time the quickest in the industry. Lead-times for the 90880 UPS Maintenance Bypass ranges from two to three weeks delivery after receipt of order.

Contact our support team with questions on installation, service, and preventative maintenance.

LEAD TIME
approx. 8-10 Weeks ARO

Key Features

  • Available in 14K to 65K AIC ratings
  • Three breaker design (15A-225A)
  • 30-inch wide wall mount design
  • Compact design minimizes footprint
  • Multiple system configurations
  • Optional solenoid key release for added safety

Additional information

Weight 210 lbs
Dimensions 30 × 10 × 36 in
Voltage

208/120VAC 3Ph/4W, 480/277VAC 3Ph/4W, 480VAC 3Ph/3W

Amperage

30A, 40A, 50A, 60A, 70A, 80A, 90A, 100A, 125A, 150A, 175A, 200A, 225A

AIC Rating

High 65k (208V or 480V), Low 14-35k (480V), Low 18-22k (208V)

Security

Basic Kirk-Keys, Kirk-Keys with 24VAC SKRU

Color

Black

Downloads

Please login to view downloads.

Reviews

There are no reviews yet.

Be the first to review “90880 UPS Maintenance Bypass” Cancel reply

Your email address will not be published. Required fields are marked *
