90885 UPS Maintenance Bypass Open

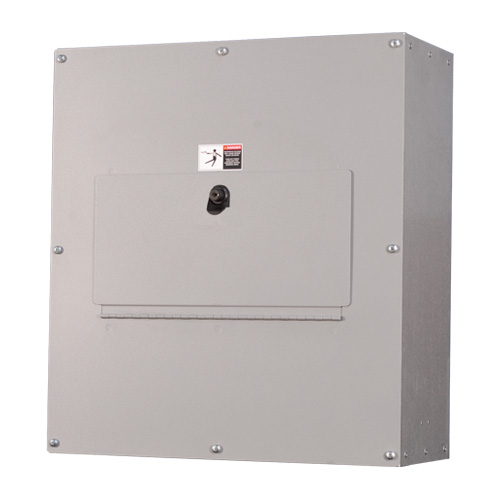

90885 UPS Maintenance Bypass Closed

90885 UPS Maintenance Bypass

$3,568.00 – $6,443.00

C&C Power offers Wall Mount Maintenance Bypass Breaker Panels available in multiple configurations. The 90885 Wall Mount UPS Maintenance Bypass (30-225AMPS) allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

Our 90885 UPS Maintenance Bypass is available at 10k AIC for 480V and 208V 3-phase applications. It’s also available in a 120/240 VAC single-phase configuration. The compact design minimizes your footprint and allows you versatility in placement in any facility. This wall mount bypass contains three Cutler-Hammer Series C circuit breakers. A Kirk Key interlock security system protects the breakers and comes standard on every configuration.

Clear
SKU: 90885-CXXXXXXXXXXXXXXXXXXXX Category: Maintenance Bypasses Tag: Wall Mount Maintenance Bypass
  • Description
  • Key Features
  • Specifications
  • Downloads
  • Reviews (0)

Description

C&C Power offers Wall Mount Maintenance Bypass Breaker Panels available in multiple configurations. The 90885 Wall Mount UPS Maintenance Bypass (30-225AMPS) allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

Our 90885 UPS Maintenance Bypass is available at 10k AIC for 480V and 208V 3-phase applications. It’s also available in a 120/240 VAC single-phase configuration. The compact design minimizes your footprint and allows you versatility in placement in any facility. This wall mount bypass contains three Cutler-Hammer Series C circuit breakers. A Kirk Key interlock security system protects the breakers and comes standard on every configuration.

Each bypass cabinet is welded with heavy-gauge galvanized steel construction.  It is available in a black finish with a latched door. The cabinet comes fully assembled and tested from the factory. Safety instructions and repair services are conveniently placed in the unit. C&C Power warehouses all maintenance bypass options, therefore, making your lead-time the quickest in the industry. Lead-times for the 90885 UPS Maintenance Bypass range from two to three weeks delivery after receipt of order.

Contact our support team with questions on installation, service, and preventative maintenance.

LEAD TIME
approx. 8-10 Weeks ARO

Key Features

  • Available in 10K AIC rating
  • Three breaker design (15A-225A)
  • 22-inch wide wall mount design
  • Compact design minimizes footprint
  • Multiple system configurations

Additional information

Weight 55 lbs
Dimensions 22 × 24 × 9 in
Voltage

208/120VAC 3Ph/4W, 480/277VAC 3Ph/4W, 480VAC 3Ph/3W

Amperage

30A, 40A, 50A, 60A, 70A, 80A, 90A, 100A, 125A, 150A, 175A, 200A, 225A

AIC Rating

Minimum 10k

Security

Basic Kirk-Keys

Color

Black

Downloads

Please login to view downloads.

Reviews

There are no reviews yet.

Be the first to review “90885 UPS Maintenance Bypass” Cancel reply

Your email address will not be published. Required fields are marked *
