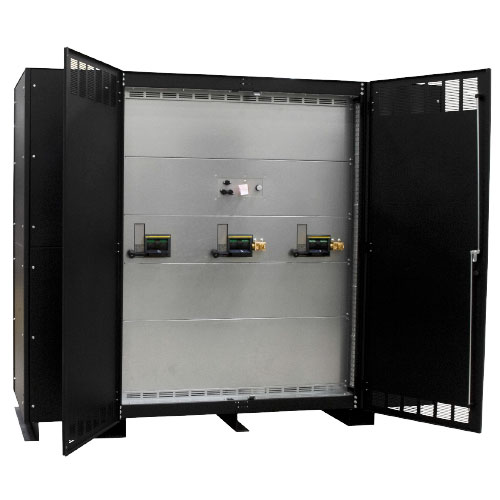

90817 UPS Maintenance Bypass

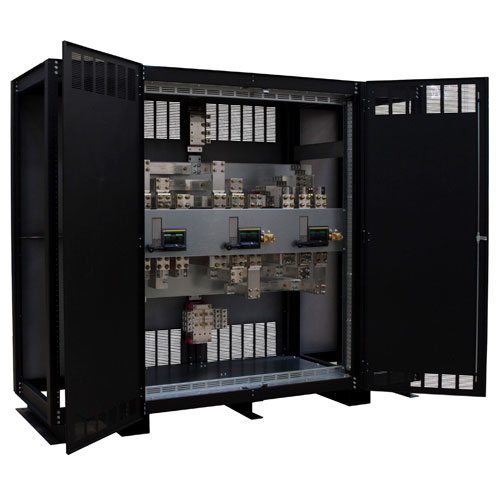

90817 UPS Maintenance Bypass open image

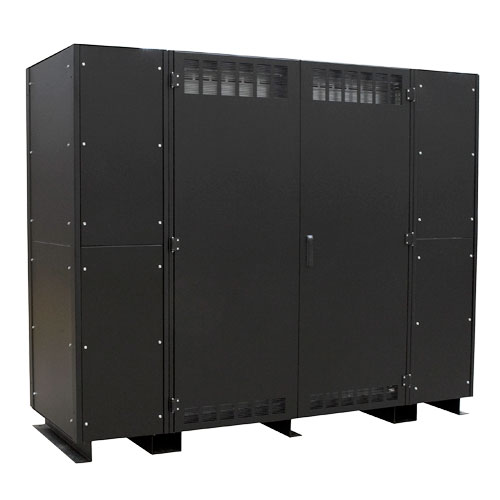

90817 UPS Maintenance Bypass Closed Image

90817 UPS Maintenance Bypass (1600-2500AMPS)

$52,924.00 – $90,649.00

C&C Power offers Free Standing Maintenance Bypass Breaker Cabinet (MBBC) available in multiple configurations. The 90817 UPS Maintenance Bypass allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance.  At the same time, maintaining power to your critical load is essential in this process. This bypass cabinet is an excellent solution to pair with a 1MW UPS system.

These free-standing bypass panels are only available in a high 65K AIC rating for 480VAC applications. The 90817 Series MBBC contains three Cutler-Hammer Series Circuit breakers up to 2500 amperage. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

NEW to this product is the security feature, the Automatic Bypass interface. This touchscreen logic enhances the safety of the system while eliminating the human variable which ensures safe operation preventing damage to the equipment and serious injury to the operator.

Consider optimal manufacturing configurations when specifying, installing, and operating maintenance bypasses. Designing your maintenance bypass options from the start can help ensure reliable electrical and mechanical system operation throughout your critical facility.

Clear
SKU: 90817-C4833XXXXXXXXXXXXXXXX Category: Maintenance Bypasses Tag: Maintenance Bypass
  • Description
  • Key Features
  • Specifications
  • Downloads
  • Reviews (0)

Description

C&C Power offers Free Standing Maintenance Bypass Breaker Cabinets (MBBC) available in multiple configurations. The 90817 UPS Maintenance Bypass allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance.  At the same time, maintaining power to your critical load is essential in this process. This bypass cabinet is an excellent solution to pair with a 1MW UPS system.

These free-standing bypass panels are only available in a high 65K AIC rating for 480VAC applications. The 90817 Series MBBC contains three Cutler-Hammer Series Circuit breakers up to 2500 amperage. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

NEW to this product in security features is the Automatic Bypass interface. This touchscreen logic enhances the safety of the critical load while giving remote access to the system.

Each cabinet is 92 inches wide welded with heavy-gauge steel construction and has double-hinged locking front doors. Available colors include black or beige. It comes fully assembled and tested from the factory. C&C Power warehouses all maintenance bypass options, therefore, making your lead-time the quickest in the industry. Lead-times for the 90817 UPS Maintenance Bypass ranges from four to five weeks delivery after receipt of order.

LEAD TIME
Approx. 30 Weeks ARO

Key Features

  • 65k AIC Rating
  • Three breaker bypass up to 2500A
  • Optional solenoid key release
  • 92” wide free-standing cabinet
  • Compact design minimizes footprint
  • Multiple system configurations
  • Listed to UL 891

Additional information

Weight 1500 lbs
Dimensions 48 × 72 × 85 in
Voltage

480/277VAC 3Ph/4W, 480VAC 3Ph/3W

Amperage

1600A, 2000A, 2500A

AIC Rating

High 65k

Security

Automatic Bypass, Basic Kirk-Keys, Kirk-Keys with 24VAC SKRU

Color

Beige, Black
