90826 maintenance bypass cabinet inside

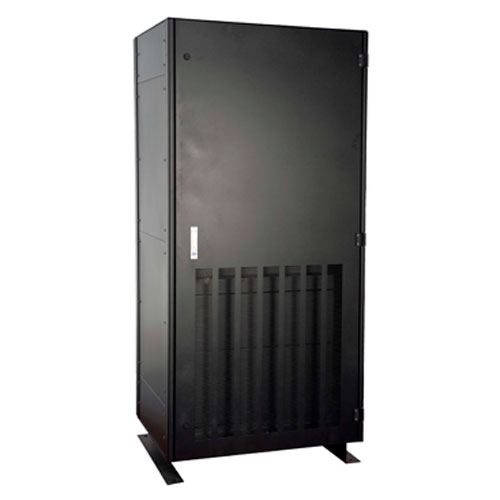

90826 Maintenance Bypass Cabinet Closed Image

90826 UPS Maintenance Bypass (800-1200AMPS)

$24,293.00 – $53,785.00

C&C Power offers Free Standing Maintenance Bypass Breaker Cabinets (MBBC) available in multiple configurations. The 90826 UPS Maintenance Bypass allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

This free-standing maintenance bypass has an amperage range from 800 to 1200amps and is available in AIC high 65K ratings for both 208V and 480V models. It is also available with an AIC low 35-50k rating for 480V. The 90826 UPS Maintenance Bypass contains three Cutler-Hammer Series Circuit breakers. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

NEW to this product is the security feature, the Automatic Bypass interface. This touchscreen logic enhances the safety of the system while eliminating the human variable which ensures safe operation preventing damage to the equipment and serious injury to the operator.

Consider optimal manufacturing configurations when specifying, installing, and operating maintenance bypasses. Designing your maintenance bypass options from the start can help ensure reliable electrical and mechanical system operation throughout your critical facility.

Clear
SKU: 90826-CXXXXXXXXXXXXXXXXXXXX Category: Maintenance Bypasses Tag: Freestanding Maintenance Bypass
  • Description
  • Key Features
  • Specifications
  • Downloads
  • Reviews (0)

Description

C&C Power offers Free Standing Maintenance Bypass Breaker Cabinets (MBBC) available in multiple configurations. The 90826 UPS Maintenance Bypass allows the end-user to safely isolate the UPS from utility power and from the load while performing regular service and maintenance. At the same time, maintaining power to your critical load is essential in this process.

This free-standing maintenance bypass has an amperage range from 800 to 1200amps and is available in AIC high 65K ratings for both 208V and 480V models. It is also available with an AIC low 35-50k rating for 480V. The 90826 UPS Maintenance Bypass contains three Cutler-Hammer Series Circuit breakers. A Kirk Key interlock system protects the breakers. In addition, an SKRU (solenoid key release) option is available for added security.

NEW to this product in security features is the Automatic Bypass interface. This touchscreen logic enhances the safety of the critical load while giving remote access to the system.

Each bypass cabinet is welded with heavy-gauge galvanized steel construction and has double-hinged locking front doors. Cabinet legs are reversible for easy assess to floor mounting hardware. Available colors include black or beige. It comes fully assembled and tested from the factory. C&C Power warehouses all maintenance bypass options, therefore, making your lead-time the quickest in the industry. Lead-times for the 90826 UPS Maintenance Bypass ranges from two to three weeks delivery after receipt of order.

Listed to UL 891 and CSA certified.

LEAD TIME
approx. 8-10 Weeks ARO

Key Features

  • 800-1200 Amps
  • Available in 35k or 65k AIC ratings
  • Three bypass breaker design
  • Multiple system configurations
  • Automatic bypass security option
  • Kirk Key SKRU security option
  • Optional color finishes
  • 2-3 week turnaround time
  • Listed to UL 891 and CSA certified

Additional information

Weight 710 lbs
Dimensions 32.8 × 36 × 78.7 in
Voltage

208/120VAC 3Ph/4W, 480/277VAC 3Ph/4W, 480VAC 3Ph/3W

Amperage

800A, 1000A, 1200A

AIC Rating

High 65k (208V or 480V), Low 35-50k (480V)

Security

Automatic Bypass, Basic Kirk-Keys, Kirk-Keys with 24VAC SKRU

Color

Beige, Black

Downloads

Please login to view downloads.

Reviews

There are no reviews yet.
