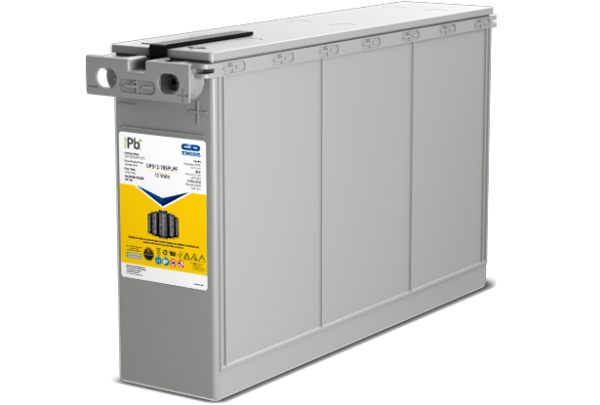

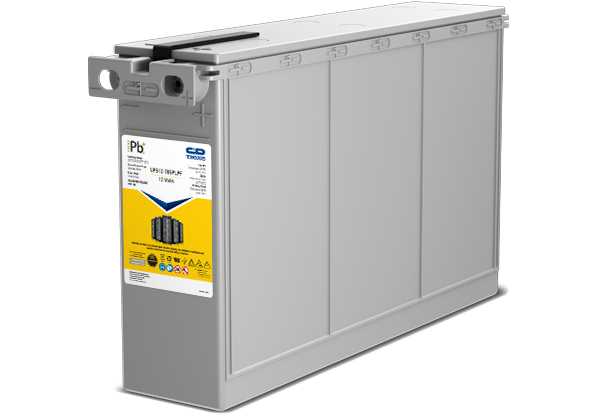

C&D Pure Lead Plus UPS Series

C&D Pure Lead Plus UPS Series

$300.07 – $636.72

C&D Pure Lead Plus UPS batteries combine the reliability of VRLA technology with advanced proprietary paste and grid innovations. Designed for safety and sustainability, these batteries offer up to 40% lower replacement costs and boast a 2-year shelf life, even in higher ambient temperatures. The Pure Lead Plus series is a smart, efficient solution for ensuring uninterrupted power in your data center.

Find more product information on the C&D PLP DataSheet. Contact our support team with questions on installation, service, and preventative maintenance on any UPS battery replacement or battery cabinet system.

SKU: N/A Category:

Description

C&D Pure Lead Plus UPS batteries combine the reliability of VRLA technology with advanced proprietary paste and grid innovations.



Model Terminal Maximum Discharge Current (Amps) Short Circuit Current (Amps @ 0.1 sec) Terminal Type Terminal Torque Weight (lbs) Length (in) Width (in) Height (in)
UPS12-215PLP Top 800 2056 10-32 UNF 30 in. - lbs. (3.4 N-m) 42 9.0 5.5 7.9
UPS12-305PLP Top 800 3600 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 58.4 10.3 6.8 7.9
UPS12-355PLP Top 800 4200 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 67.4 12.0 6.8 7.9
UPS12-405PLP Top 800 4700 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 75.8 13.4 6.8 8.4
UPS12-495PLP Front 800 5000 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 100.0 13.6 6.8 10.8
UPS12-545PLP Front 800 5000 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 100.0 13.6 6.8 10.8
UPS12-605PLP Front 800 5000 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 109.0 13.6 6.8 10.8
UPS6-625PLP Top 800 4350 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 72.0 12.63 6.97 8.82
UPS12-675PLPF Front 800 5100 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 124.6 22.0 4.9 11.0
UPS12-705PLPF Front 900 5500 1/4-20 UNC 110 in.-lbs. (12.4 N-m) 149.0 22.0 4.9 12.6
UPS12-1005PLPF Front 1200 6048 Insert (M8) 160 in.-lbs. (18 N-m) 188.0 22.0 6.1 12.6

Key Features

• 12+ year design life @ 25˚C (77˚F) with storage capability of 2 years at 25˚C (77˚F) with minimum upkeep • Standard warranty of 5 years at 30˚C (86 F) • MSE’s Advanced proprietary paste processing for high active material utilization resulting in low float • Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life • Available in both Top terminal and TFA (True Front Access) formats • Our TFA design maximizes energy density and minimizes internal resistance by providing a direct connection from the plates to the terminals • Published rates down to 1 minute • Patented UL Recognized Flame-arresting vents in each cell for safety • Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal • Can be operated in any orientation

Additional information

Weight N/A
Dimensions N/A
Model

UPS12-215PLP, UPS12-305PLP, UPS12-355PLP, UPS12-405PLP, UPS12-495PLP, UPS12-545PLP, UPS12-605PLP
