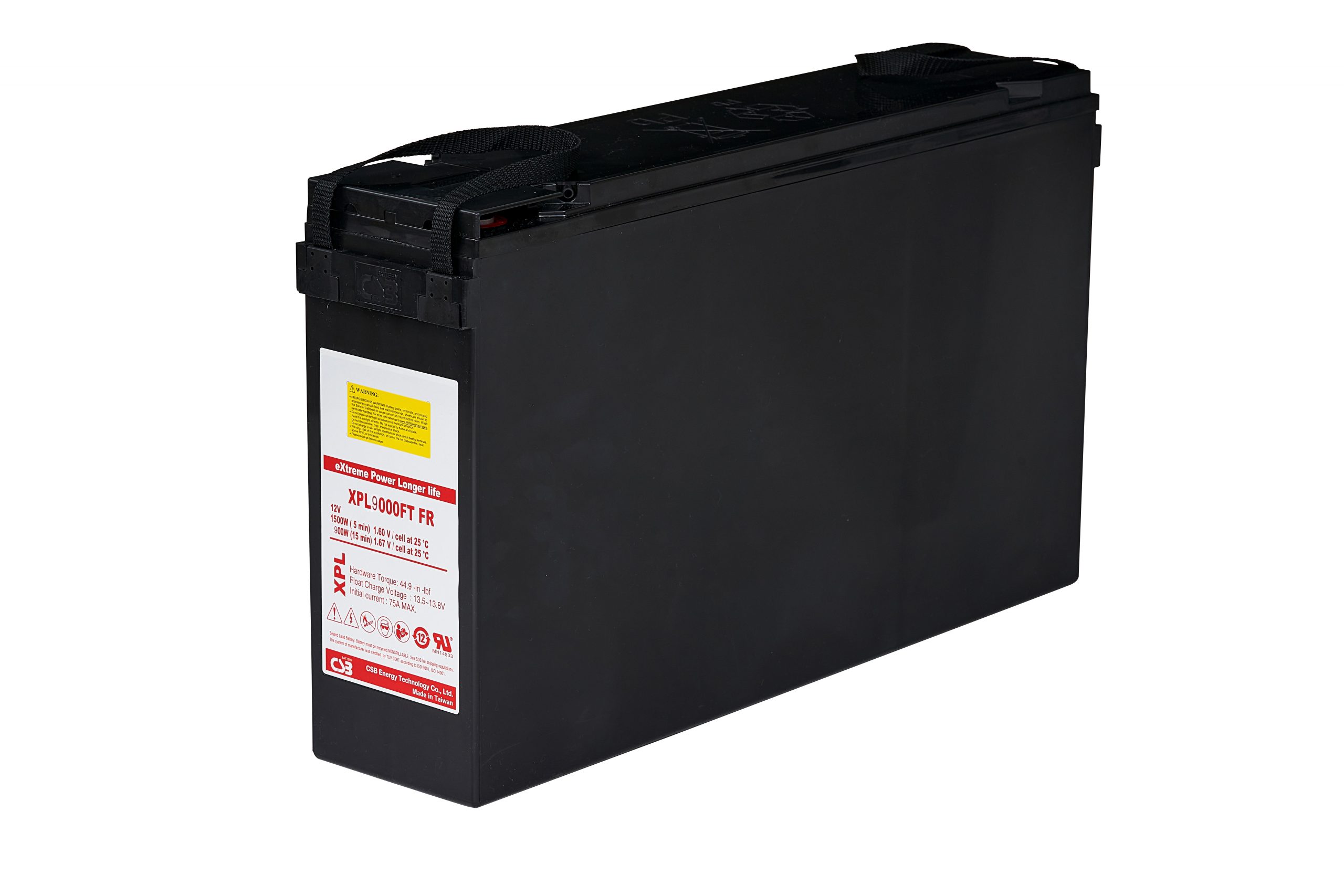

CSB XPL-FT Series

CSB XPL-FT Series

$654.84 – $838.40

CSB XPL Front Terminal Series offers high-rate power backup with a front terminal design for even higher power density in shorter duration, up to 30 seconds. XPL-FT are designed for data center application to provided extended service life.

Contact our support team with questions on installation, service, and preventative maintenance on any UPS battery replacement or battery cabinet system.

SKU: N/A Category:

Description

CSB XPL Front Terminal Series is a Valve Regulate Lead Acid battery with a pure lead construction and other proprietary elements.  XPL-FT batteries are designed for High-Rate UPS, Float service standby power applications.

Specifications:

Model Nominal Capacity
9.6 per PCS		 Terminal
Type		 Watts/Cell
(15 min @ 1.67 V)		 Length (in) Width (in) Height (in) Weight (lbs)
XPL7000FT 7000W @5min-rate Front 642.50 21.97 4.96 10.04 109.57
XPL8000FT 8000W @5min-rate Front 821.50 21.97 4.96 12.72 143.96
XPL9000ET 9000W @5min-rate Front 907.67 21.97 4.96 12.72 153.22



Key Features

  • Wafer-thin plate technology combined with special proprietary formula utilizing 99.99% pure lead ingot in production for lead oxide, lead plate grids, and other lead components.
  • Design life of up to 10 years in standby service.
  • Optional flame-retardant ABS case construction,
  • UL1973 Certified (file number MH66728) + UL recognized under UL1989 (file number MH14533).
  • Comply with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as “Dry charge” 49 CFR 171-189 for surface transport.

Additional information

Model

XPL2200, XPL2700, XPL3500, XPL4200, XPL4700, XPL5700, XPL6700, XPL7000FT, XPL8000FT, XPL9000FT
