Caledon Battery Charger

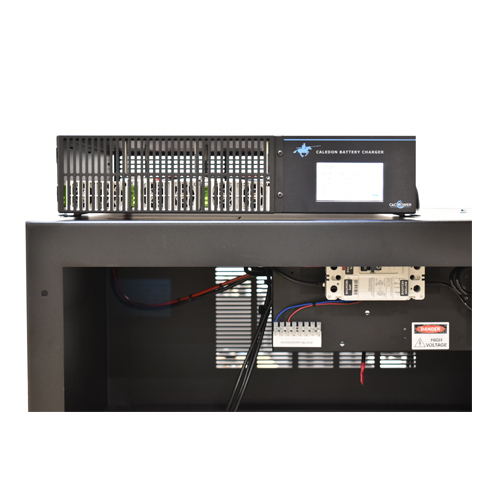

Caledon Battery Charger on top of battery cabinet

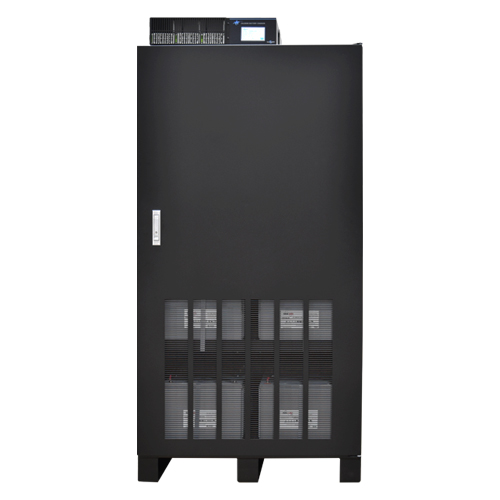

Caledon Battery Charger Cabinet DC Power
Caledon Battery Charger

Caledon Battery Charger

$5,316.00 – $12,575.00

The Caledon Battery Charger is a DC charger that has an HMI module. The HMI module provides real-time operational status screens and alarm condition screens. This unit is ideal for utility power, telecommunications, UPS systems, and other stationary battery applications. The extra charge current allows for additional larger batteries to be added to the UPS system for extended battery runtimes.

Maximize the life of your batteries by using the innovative Caledon Battery Charger for voltage regulation, current limiting, and temperature compensation. Good management of lead-acid batteries and correct charging greatly improves battery performance. The setup of the operational parameters and alarm limits is facilitated through the HMI module.

DC power systems take continuous AC voltage in and provide controlled variable DC voltage out. The Caledon Battery Charger DC output range is from nominal 48VDC to 288VDC at 25A or 60A. A 15 foot DC Output cable and a temperature sensor probe assembly is supplied with each charger.

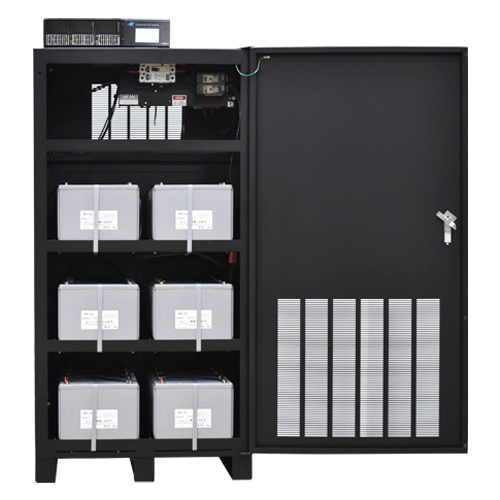

* Caledon Charger is shown on Battery Cabinet BC39

Clear
SKU: 92506-XXXX Category: Battery Chargers Tag: Battery Charger
  • Description
  • Key Features
  • Specifications
  • Downloads
  • Reviews (0)

Description

The Caledon Battery Charger is a DC charger that has an HMI module. The HMI module provides real-time operational status screens and alarm condition screens. This unit is ideal for utility power, telecommunications, UPS systems, and other stationary battery applications. The extra charge current extends the battery runtime during prolonged power outages.

Maximize the life of your batteries by using the innovative Caledon Battery Charger for voltage regulation, current limiting, and temperature compensation. Good management of lead-acid batteries and correct charging greatly improves battery performance. The setup of the operational parameters and alarm limits is facilitated through the HMI module.

DC power systems take continuous AC voltage in and provide controlled variable DC voltage out. The Caledon Battery Charger DC output range is from nominal 48VDC to 288VDC at 25A or 60A. A 15 foot DC Output cable and a temperature sensor probe assembly is supplied with each charger.

This high voltage DC charger can be configured to either mount into a 23” wide relay rack or on the top surface of a battery cabinet. Mounting must be located in proximity to the battery cabinet whose batteries are to be charged.

All C&C Power products are factory tested to some of the highest standards in the industry. Please contact our support team with questions on installation, service, and preventative maintenance.

LEAD TIME
2-7 Weeks ARO

Color: Black
Operating Temperature: 0° C to 40° C (32° F to 104° F)
Wire Size and Type: Per National Electrical Code (ANSI/NFPA) and Canadian Electrical Code and/or all applicable national and local codes.

120/208V 1Ph Hardwire Input



Charger
Output
Voltage DC
Input
AC Voltage
Single Phase
Output
Current
Max
Float
Voltage
2.25 / cell
Min
Output
Voltage
Max
Output
Voltage
48 100 – 120
200 – 277
27A
60A
54V 42V 58V
72 100 – 120
200 – 240
24A
57A
81V 46V 130V
120 100 – 120
200 – 240
24A
57A
135V 69V 195V
144 100 – 120
200 – 277
27A
60A
162V 126V 174V
192 100 – 120
200 – 277
27A
60A
216V 168V 232V
240 100 – 120
200 – 277
27A
60A
270V 210V 290V
288 100 – 120
200 – 277
27A
60A
324V 252V 348V

Key Features

  • Rack mount or battery cabinet top surface mount
  • PID (Proportional Integral Derivative) controller
  • Alarm Relay Contacts
  • Emergency Power Off (EPO)
  • TCP/IP Network connection
  • Webpage presents status information
  • Modbus TCP/IP
  • Simple Network Management Protocol (SNMP) version V1, V2c and V3
  • Simple Mail Transfer Protocol (SMTP)
  • Graphical User Interface (GUI)
  • Temperature compensation charger voltage prolongs battery life
  • Powder coated steel construction
  • Factory assembled and fully tested

Additional information

Weight 43 lbs
Dimensions 23.1 × 21.6 × 4.5 in
Voltage

120V, 144V, 192V, 240V, 288V, 48V, 72V

Color

Black
