Description

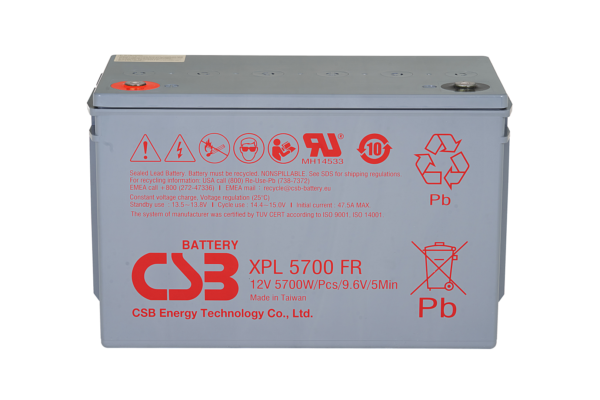

The CSB extreme high power and life batteries series are maintenance-free sealed lead-acid batteries. The CSB XPL battery is ideal for UPS power supplies and Data Center applications.
Contact our support team with questions on installation, service, and preventative maintenance on any UPS battery replacement or battery cabinet system.
| Model | Nominal Capacity 9.6 per PCS |
Terminal Type |
Watts/Cell (15 min @ 1.67 V) |
Length (in) | Width (in) | Height (in) | Weight (lbs) |
| XPL2200 | 2200W @5min-rate | Top | 201.50 | 8.89 | 5.45 | 8.12 | 36.70 |
| XPL2700 | 2700W @5min-rate | Top | 252.67 | 8.89 | 5.45 | 8.12 | 40.82 |
| XPL3500 | 3500W @5min-rate | Top | 318.67 | 10.28 | 6.63 | 8.41 | 56.86 |
| XPL4200 | 4200W @5min-rate | Top | 370.17 | 10.28 | 6.63 | 8.41 | 62.17 |
| XPL4700 | 4700W @5min-rate | Top | 438.83 | 12.5 | 6.65 | 8.41 | 72.73 |
| XPL5700 | 5700W @5min-rate | Top | 502.83 | 13.5 | 6.69 | 8.53 | 81.33 |
| XPL6700 | 6700W @5min-rate | Top | 651.83 | 13.5 | 6.69 | 10.85 | 105.57 |
