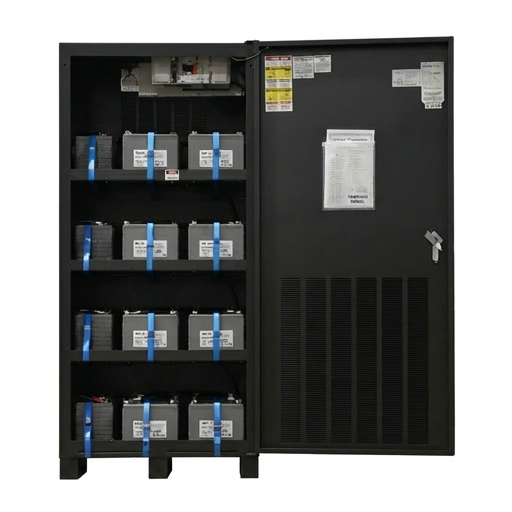

BC43 Battery Cabinet
C&C Power’s BC43 Battery Cabinet is a top terminal battery cabinet that can support system sizes from 80kVA-225kVA. The BC43 Top Terminal Battery Cabinet is primarily used to support large IT rooms, large networks, mid-size data centers, utility systems, healthcare facilities, and industrial manufacturing. This top terminal cabinet meets all agency approvals when it comes to safety, installation, operation, and equipment maintenance. C&C Power can provide you with a customized power supply plan that will efficiently serve your organization.
The BC43 can hold up to forty 620 watt or sixty 200 watt batteries. This NEMA I rated battery cabinet is constructed of welded, heavy-gauge steel and is available in multiple colors of durable and corrosion-resistant, powder coat finish. Battery cabinet systems come fully assembled and tested from the factory.
C&C Power offers a variety of paralleling options for multi-cabinet lineups including top hat and freestanding solutions with cables. Cables come precut with compression lugs crimped at each end.
Contact our support team with questions on installation, service, and preventative maintenance on any Battery Cabinet system.
Key Features
Battery Configurations
Specifications
Downloads
- Unique design allows for easy battery maintenance
- Breaker and fuse options for single or multiple string applications
- Hinged, locking front door for easy and secure access
- Welded, heavy gauge steel construction
- Factory assembled and fully tested
- Listed to UL 1778 and CE Mark authorized for the EU market
- Seismic Certified options available
| WPC Capacity | Max. # Batteries |
|---|---|
| 200W | 60 |
| 300W | 40 |
| 350W | 40 |
| 400W | 40 |
| 500W | 40 |
| 540W | 40 |
| 620W | 40 |
