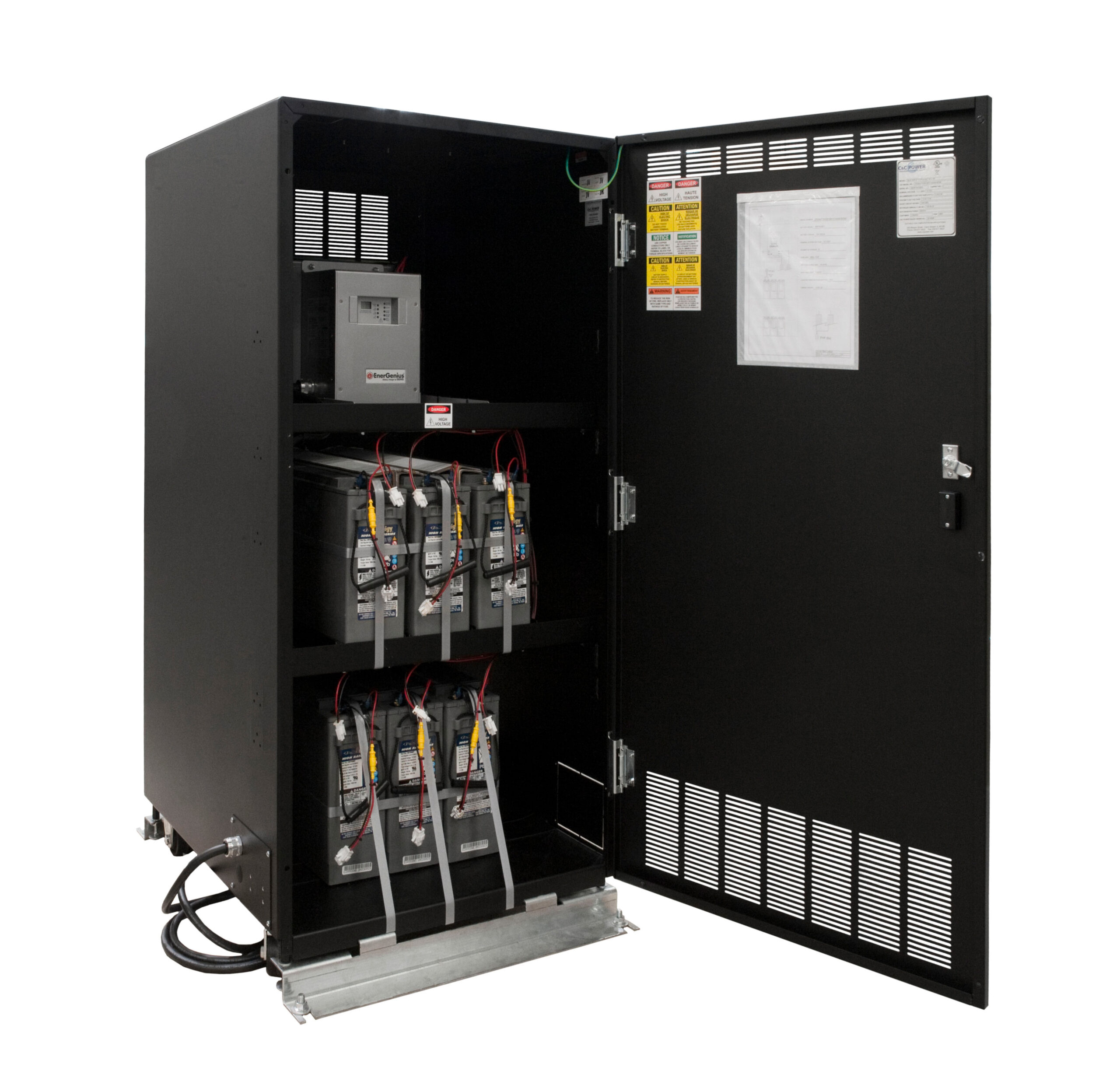

BC25 Spares Battery Cabinet
C&C Power’s BC25 Spares Battery cabinet is a convenient solution for storing spare batteries on-site. The cabinet consists of a 12-volt charger inside that is pre-wired to the batteries with pluggable connectors.
The BC25 Spares Battery Cabinet charger keeps the batteries fully charged and allows for immediate replacement into critical systems. This NEMA 1 rated battery cabinet is constructed of welded, heavy-gauge steel and is available in multiple colors of durable and corrosion-resistant, powder coat finish.
Contact our support team with questions on installation, service, and preventative maintenance on any Battery Cabinet system.
Key Features
Battery Configurations
Specifications
Downloads
- Standard 115/130 VAC hardwire input
- Max Current: 5.6A @ 115 VAC/2.8A @230 VAC
- Internal 12 VDC charger
- Optional input cord available
- Batteries are pre-installed with pluggable connectors
- Heavy duty casters with elevator bolts
- Multiple battery configurations Available in multiple powder coat finishes
- Zone 4 approved
- Seismic certified options available
Top Terminal
Front Access
| WPC Capacity | Max. # of batteries | Weight |
| 200W | 30 | 1565 |
| 300W | 24 | 1715 |
| 350W | 24 | 1980 |
| 400W | 24 | 2120 |
| 500W | 16 | 2023 |
| 540W | 16 | 2071 |
| 620W | 16 | 1991 |
| WPC Capacity | Max. # of batteries | Weight |
| 100AH | 10 | 1175 |
| 150AH | 10 | 1575 |
| 170AH | 10 | 1875 |
Dimensions: 36”W x 78.7”H x 29.5”D
Weight: 488 lbs
