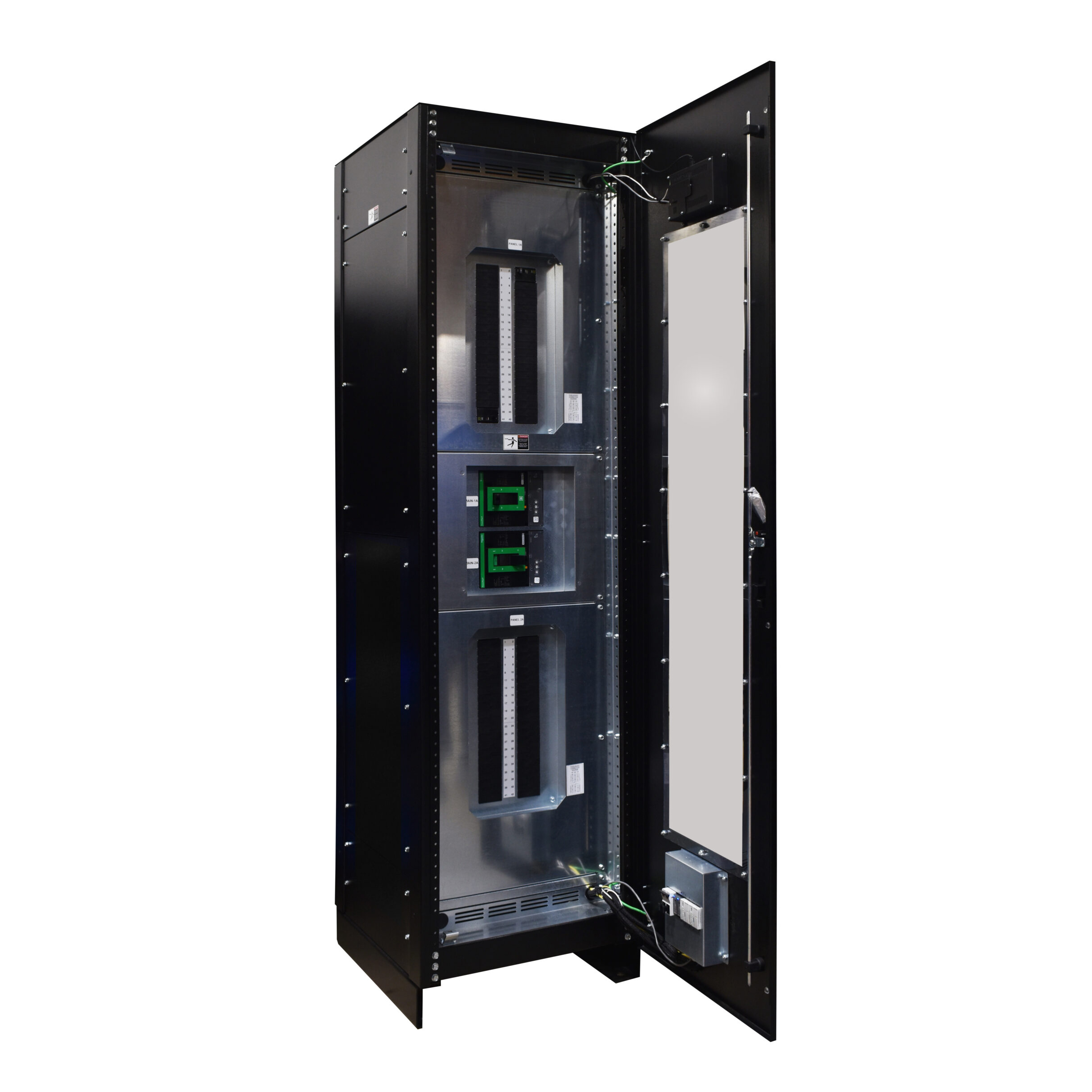

Gen-II RPP
The Gen II RPP (Remote Power Panel) is a distribution solution designed for reliability in critical environments. Engineered for versatility, it offers customizable options to address a wide range of operational needs, with our team exclusively developing and maintaining all software in-house. UL Listed and CSA certified, the Gen II RPP ensures compliance with industry standards, making it an ideal choice for data centers and industrial applications.
Contact our support team with questions on installation, service, and preventative maintenance on any AC Solution for your critical data center.
Contact our support team with questions on installation, service, and preventative maintenance on any AC Solution for your critical data center.
- 7" touch screen HMI
- Branch Circuit Monitoring comes with "Open", "Closed", "Tripped" monitoring on panel board breaks
- Web interface for easy configuration and monitoring
- All software written and supported in-house
| Type | Voltage | Panel Amperage | Panel Circuits | # of Panels |
|---|---|---|---|---|
| Compact, 24”W x 12”D x 84”H | 208/240V 3Ph 4W | 225–400A | 42 | 2 |
| Compact, 24”W x 12”D x 84”H | 208/240V 3Ph 4W | 225–400A | 84 | 1 |
| Compact, 24”W x 12”D x 84”H | 208/240V 3Ph 4W | 600A | 42 | 1 |
| Compact, 24”W x 12”D x 84”H | 415/480V 3Ph 4W | 225–600A | 42 | 1 |
| Back 2 Back, 24”W x 24”D x 84”H | 208/240V 3Ph 4W | 225–400A | 42 | 2 Front / 2 Rear |
| Back 2 Back, 24”W x 24”D x 84”H | 208/240V 3Ph 4W | 225–400A | 84 | 1 Front / 1 Rear |
| Back 2 Back, 24”W x 24”D x 84”H | 208/240V 3Ph 4W | 600A | 42 | 1 Front / 1 Rear |
| Back 2 Back, 24”W x 24”D x 84”H | 415/480V 3Ph 4W | 225–600A | 42 | 1 Front / 1 Rear |
