CSB XPL6700W Battery

Description

The CSB XPL6700W Battery is an extremely high rate maintenance-free sealed lead-acid battery.  It is specially designed for high efficient discharge and long life for standby power applications. Its characteristics are small volume, lightweight, and high discharge efficiency. It is ideal for UPS power supplies, telecommunications equipment, emergency lighting equipment, fire alarms, security systems, and many more uses.

Design life for this sealed VRLA battery is up to 10 years in standby service or stored for more than 6 months at 77℉. The CSB XPL6700W Battery uses Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

Find more product information on the CSB XPL6700W Data Sheet. Contact our support team with questions on installation, service, and preventative maintenance on any UPS battery replacement or battery cabinet system.

Nominal Voltage: 12V (6 cells per unit)
Nominal Capacity: 6700W @5min-rate to 1.60V per PCS @25℃ (77℉)
Weight: Approx. 47.20 Kg (104.03 lbs)
Maximum Discharge Current: 800A (5sec)
Internal Resistance: Approx. 2.40 mΩ
Short Circuit Current: 3722A
Maximum Charge Current: 62A
Terminal Types: I2 thread lead alloy terminal to accept M6 bolt
Terminal Breaking Torque: 138.6 Kgf·cm / 120.3 Lbf·in / 13.58 N·m
Container Material: Flame Retardant Polypropylene (UL 94-V0)

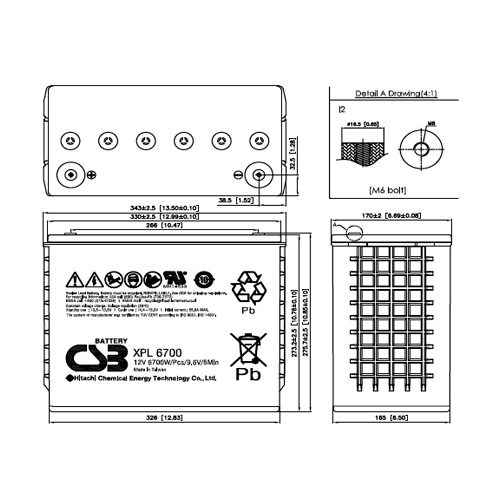

Dimensions:

Length (L) 343.0±2.5 mm 13.50±0.10 inch
Width (W) 170.0±2.0 mm 6.69±0.08 inch
Container Height (h) 273.2±2.5 mm 10.76±0.10 inch
Overall Height (H) 275.7±2.5 mm 10.85±0.10 inch
